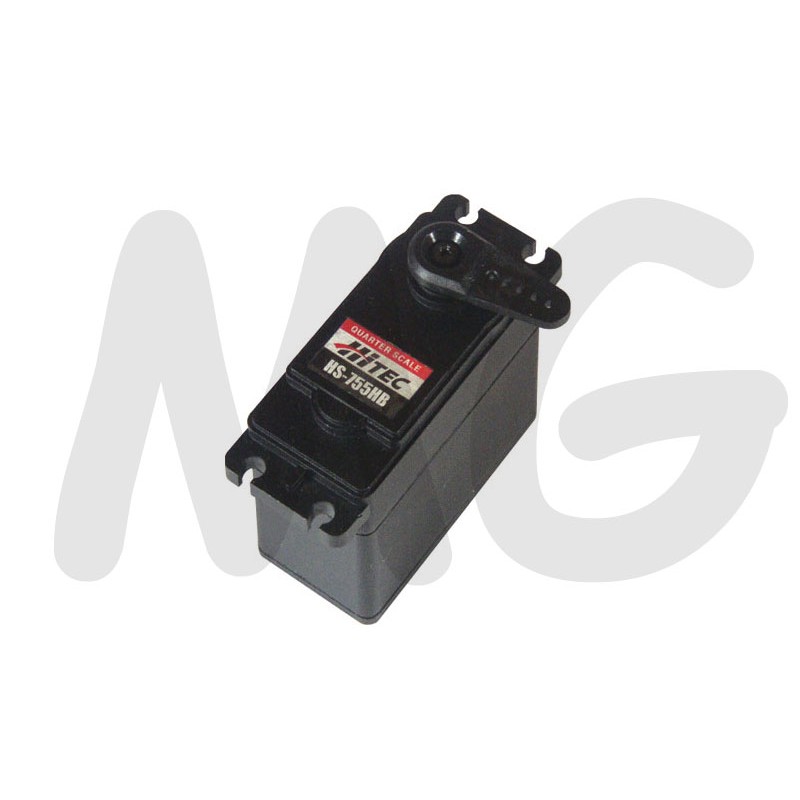

Servo HS-755HB

Hitec, 112755, Servo HS-755HB

Das neue Quaterscale- Servo

Technische Daten
- Gewicht:55.20 g
- Lager/Bearing:2 Kugellager/Ball Bearing
- Geschwindigkeit/Speed 4,8/6V (sec/60°):0.24/0.20
- Drehmoment/Torque 4,8/6V (Ncm):77/96
- Standing Torque 4,8/6V (Ncm):
- Maß/Dimension (LxBxH):40.6x19.8x37.3
- Gewicht/Weight (g):55.2
- Motor:Eisenanker/Standard
- Sonstiges/Misc:
- Getriebe/Gear:Metall/Metal
- Control System:+PULSE WIDTH CONTROL 1500usec NEUTRAL
- Operating Voltage Range:4.8V TO 6.0V
- Idle Current mA:8.8/9.1
- Running Current 4,8/6V (mA/60°):350/450
- Stall Current 4,8/6V (mA):
- Dead Band Width:8usec
- Operating Travel:
- Direction:CLOCK WISE/PULSE TRAVELING 1500 TO 1900usec
- Potentiometer Type:
- Amplifier Type:
- Horn Gear Spline:
- Splined Horns:
- Connector Wire Legth:300mm
- Connector Wire Strand Counter:
- Connector Wire Gauge:

Ersatz Zahnradsatz: 119009
