Not available any more!!! archive items 018-1525KY, DG-1001M HYPE

Hype, 018-1525KY, DG-1001M HYPE

SPECIFICATIONS
Wingspan: 2.010 mm; Length: 970 mm; Wing Area: 22.5 dm; Weight approx .: 750 g; Motor: Brushless; Battery: LiPo 11.1V; RC system: 5-channel 2.4 GHz; Scale approx .: 1: 9.9

RC functions
Elevator, rudder, aileron, motor

DESCRIPTION

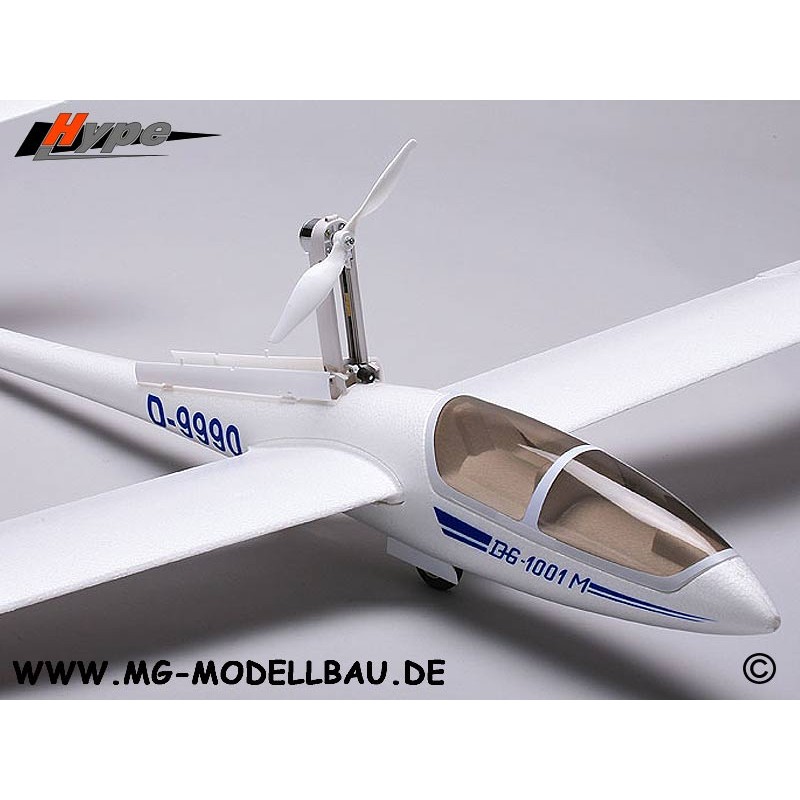

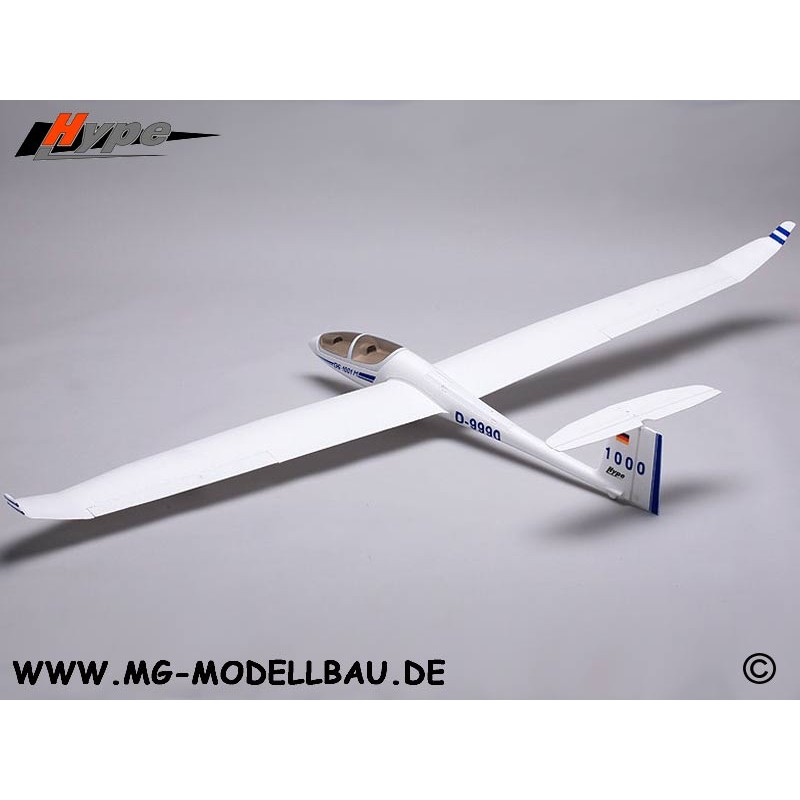

The DG-1001M is a scale replica of the popular high-performance glider of the company DG-Flugzeugbau in Bruchsal. Just like the original, the model has an innovative retractable engine that automatically turn on and extends. When retracted, the engine completely disappears into the hull. Two-fit valves on top of the fuselage close the engine bay.

The Hype DG-1001M is a further development of the DG-1000 and has numerous detail improvements. The entire mechanism of the retractable propeller has been revised. The support system for the pivoting mechanism is now extremely rigid, an oscillation of the motor is prevented. Another innovation of the DG-1001M is the wing mounting. The joiner of the two wing panels is by friction via a carbon reinforced wing connector. The wings themselves have built carbon fiber spars for reinforcement. The snap-lock latch that wing panels can be inserted securely to the hull. Also a novelty is the opening on the hull bottom. Here, either a ventilation grille or the supplied chassis are assembled. The last straw on the new DG-1001M is the optical facelift, which gives the high- performance glider its elegant appearance.

The drive of the DG-1001M is via a brushless motor, which is supplied from a 3s 11,1V LiPo battery. The control of the motor is provided by a Skywalker 40A controller, made by HOBBYWING. The controller is ready to be connected and programmed. A special mechanism ensures that the propeller is in the correct position before the engine is collapsed.

Fuselage, wings and tail are made of the newly developed material HypoDur® and have high strength with minimal weight. The wings and the horizontal stabilizer feature a carbon fiber spar for reinforcement. The DG-1001M is available either as an ARF or RTF version. The cost ARF version includes the model with five built-in servos and pre-assembled drive train consisting of brushless motor and 40A Skywalker regulator. The RTF version also includes the ready to fly mounted 2.4GHz radio control system, the LiPo battery and the 12V balancer charger. Due to the high degree of prefabrication, the model with only a few simple steps can be built ready to fly.

The control of the model of all three axes. The ailerons are made through a separate servo, which is located directly in the wing. All control surfaces are designed as a gapless elastoflaps and thus offer maximum aerodynamic efficiency.

In the air, the DG-1001M shines with good climbing performance and its outstanding sliding properties. The model is already talking to on slightest thermal and enthusiastic pilots and spectators with its unsurpassed flight performance.

FEATURES
- Scale replica of the popular glider DG-1001M
- Innovative drive by retractable engine
- New, more robust mechanism for retractable engine
- New wing mounting with snap-lock system and Carboniferous connector

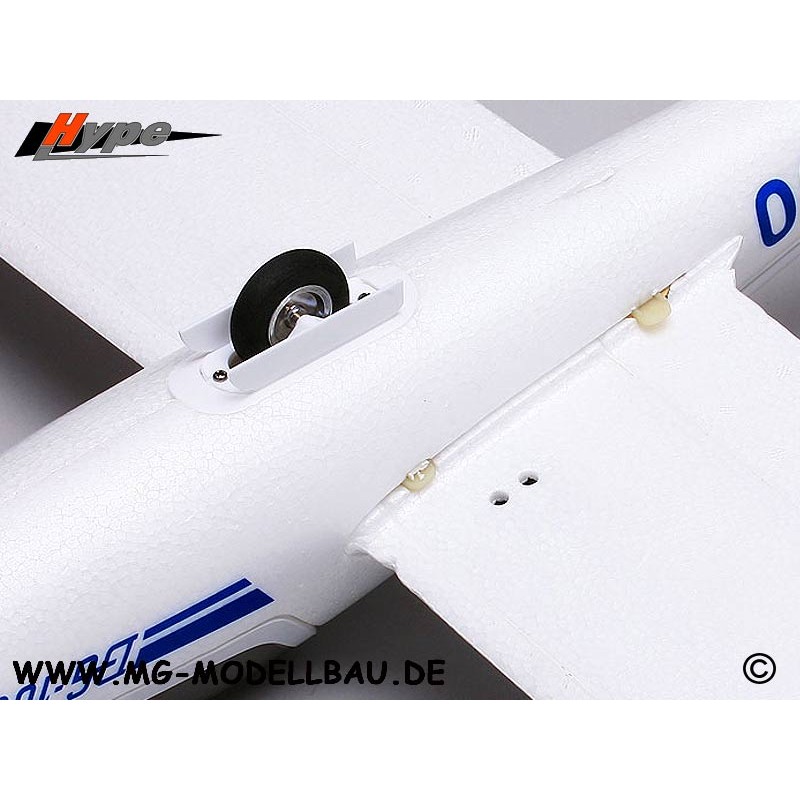

- Opening on the hull bottom for suspension or ventilation grille
- Skywalker 40A LiPo brushless controller made by HOBBYWING
- Contemporary LiPo brushless drive with high efficiency
- Fuselage, wing and tail are made of the lightweight material HypoDur®
- Wings and tailplane with carbon fiber spar
- All control surfaces designed as gapless elastoflaps
- Powerful brushless motor
- High degree of prefabrication, thus short construction period
- Superior thermal properties

DELIVERY
- Fuselage, wings and tail unit of HypoDur®
- 5 micro servos
- Brushless electric motor
- Skywalker 40A LiPo brushless controller of HOBBYWING
