Robbe 8566 Power Peak B7 EQ 12/230V

Robbe 8566 Power Peak B7 EQ 12/230VPowerful and cost-effective 12/230 V charge-discharge station with battery management for 1 .. 16 NC / NiMH batteries, 1 .. 7 cell Lithium-Ion, LiPo and LiFe batteries, as well as 1 .12 cell lead batteries. With integral Equalizer and BID system.

The universal charging station for all model ranges with a charge current of max. 10 A (50 W). It has a clear display of charge parameters and battery data via the backlit LCD display.
The menu navigation is performed in 6 languages (English, German, French, Italian, Spanish) and selected in software.
The integrated equalizer, with its powerful 280 mA automatically brings during charging of the individual cells to the same voltage level.
A powerful equalizer current and high charge current are major features for a fast battery charge.

Any adaptation of the software, the unit can be placed in the robbe Service to the latest software release.

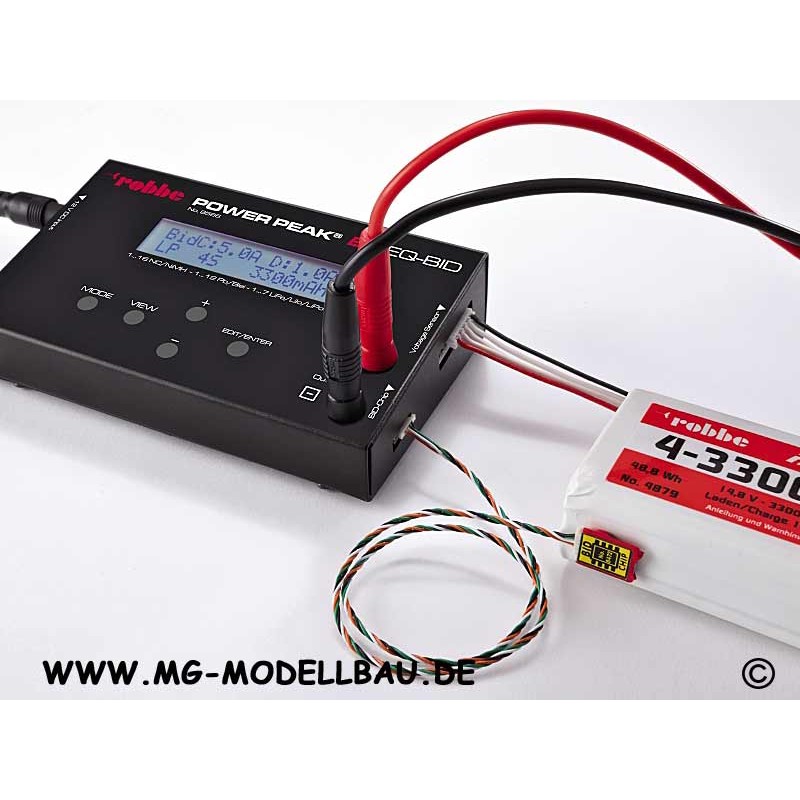

Safe and easy operation and automatic storage of the essential battery data in the robbe BID system (battery ID entifikations system)

The particular advantages of the BID system:

- Just plug in the charger and the BID-Chip/Key start by start button charging.
- Maximum protection from mishandling
- Stores the essential battery data in the BID chip
- Of course, the Power Peak B7 EQ- BID charger can also charge batteries without the BID system
- 4 internal battery data memories

Features:
Loading, unloading, discharge / charge 1x

- Display of charge and discharge capacity
- Display of input and charge voltage
- Choice of automatic or manual loading unloading
- Display the Equalizer - individual cell voltage, choice of overview (2 decimal points) or in list function with 3 decimal places (1/1000 Volt) resolution

NC / NiMH cells 1 .. 16
The digital Delta-Peak cut- off switches off the charge process at the right time and is set for NC and NiMH batteries.

Lithium battery 1 .. 7 cells

- Display of single cell voltage of Lithium battery pack
- Cut off using the CC-CV-charge method

Lead Battery 1 .. 12 cells (2 .. 24V)

- Cut off using the CC- CV-charge method

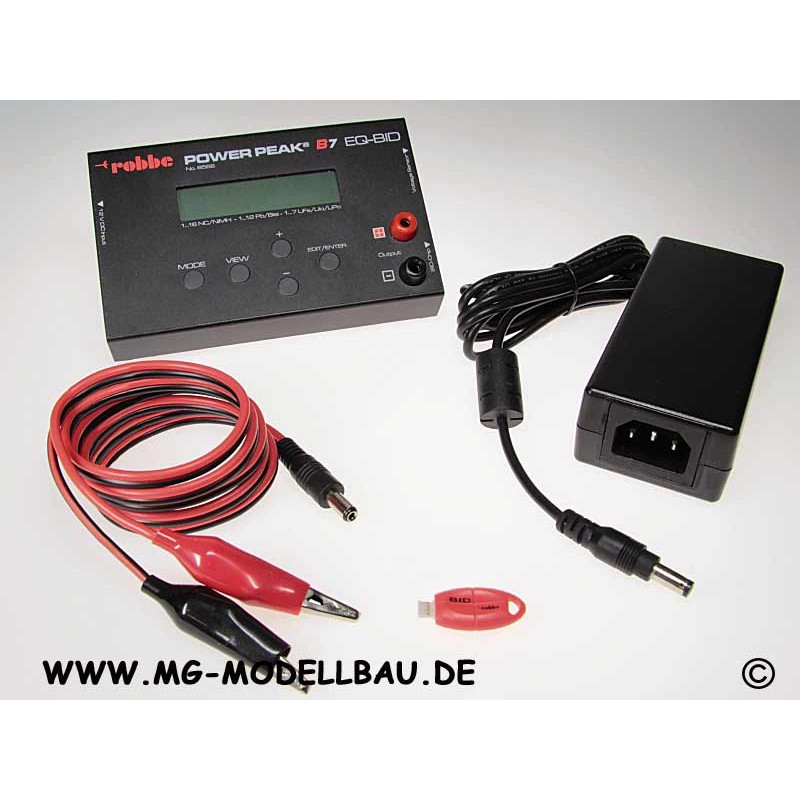

Scope of supply:
- 1 Charger Power Peak B7 EQ- BID
- 1 cable DC 12V
- 1 Power Supply 230V - 5A with IEC connector
- 1 BID chip

Specifications:
- Charge current with cell count: 3S = 5 .. 3,9 A 6S = 2.5 ... 2 A
- Charging current: 0.1 ... 10 A (50W)
- Weight: 230 g
- Input voltage: 10-15V DC or 230V AC
- Discharge current: 0.1 ... 10 A (5 W)
- Number of cells: 1-16 NiCad / NiMH
- 1-7 Lilo (3.6V), LiPo (3.7V) or LiFe (3.3V) - 9.9 Ah
- 1-12 PB / 20Ah lead- Number of cells: 1-16 NiCad / NiMH
- 1-7 Lilo (3.6V), LiPo (3.7V) or LiFe (3.3V) - 9.9 Ah
- 1-12 PB / 20Ah lead
