8563, Power Peak Twin EQ-BID 1000W

Robbe, 8563, Power Peak Twin EQ-BID 1000W

Archive Article

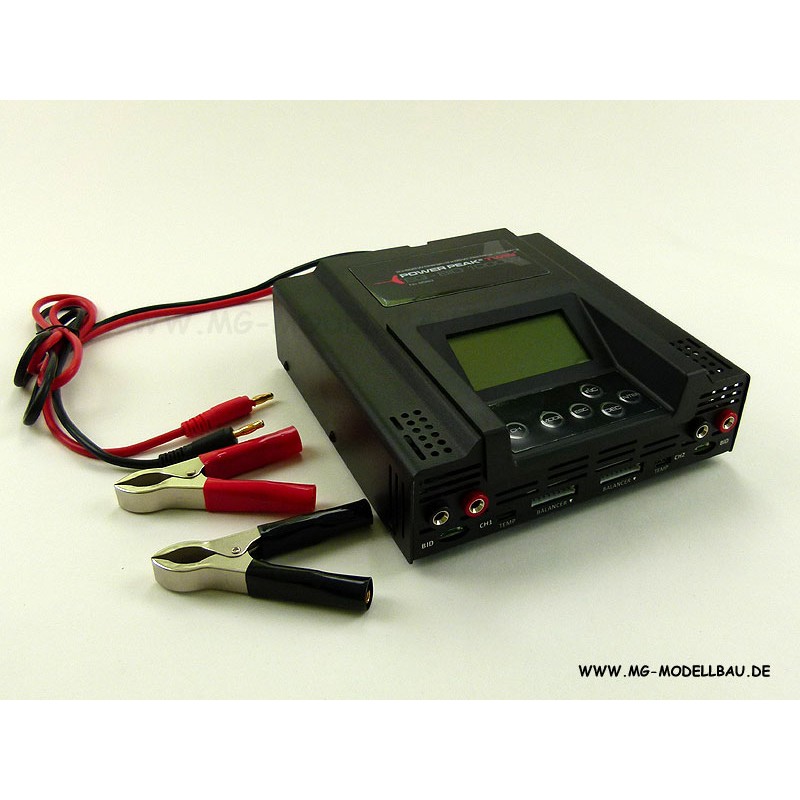

The ultimate charging station for the 1000 W professional artist. Two 500 watt outputs with up to 20 A load current in one case. The Mega-Power Li-Po charger of your drive battery recharges very quickly.

The two load branches operate completely separately from each other and are individually adjustable. For charging the display is split and thus the most important data of the two outputs are displayed simultaneously.
LEDs are used for a blue, backlit 128 x 64 pixel graphical LCD display.
The menu system is switched to the languages German, English or French.
The integral Equalizer automatically brings while charging the individual cells to the same voltage level. The Equalizer current is approximately 250 mA and is sufficient also for batteries with a capacity of 5Ah.

By connecting to the PLC robbe-switching power supply 240V/40 A. No. 8539, the charging station can be operated in a stationary home on the net.

Safe and easy operation and automatic storage of essential battery data using the robbe BID system (Battery Identification system).
The advantages of the BID system:
- Simply connect the BID key into the charger and start charging.
- Simple adjustment of the loading parameter in the menu
- Maximum protection from mis-handling
- Stores the essential battery data BID-Chip/Key
- Of course, invite the Twin Peak Power charger can also charge batteries without the BID system
- 2 BID chips are supplied with the charger.

Features:
- 11 .. 28V DC input
- 2 x 0.1 ... 20A charging current (up to 500W per output at 24 V operation, 250W at 12V operation)
- 2 x 0.1 ... 10A discharge current (max. 50W per output)
- 2 x temperature sensor input (10-60 ° C)
- 2 x 20 internal battery data memories
- 128 x 64 pixel blue backlit LCD display
- 10 tunes (selectable for each channel)
- USB port for firmware upgrades

NC / NiMH batteries:
- 2 x 1 .. 18 NC / NiMH cells - load, unload and load cycle, 1-10 x
- Charging process, auto, normal, linear and reflex shop
- Adjustable Trickle Charge
- Adjustable Peak Sensitivity

Lithium batteries, Lilo (3.6V) LiPo (3.7 V) and LiFe (3.3V):
- 2 x 1 .. 7 Lithium cells - loading and unloading
- Charge power selectable up to 5C
- TCS (Terminal Capacity Selection) cut-off point in the CV-charge range (10-100%)
- Maximum cell voltage adjustable
- Shut-in safety timer (. .. 300 20th minute, off)
- Maximum-capacity cut-off (10-120%)
- Storage mode (60%)

Lead Acid Batteries:
- 2 x 2 .. 24V Pb-lead batteries - loading and unloading

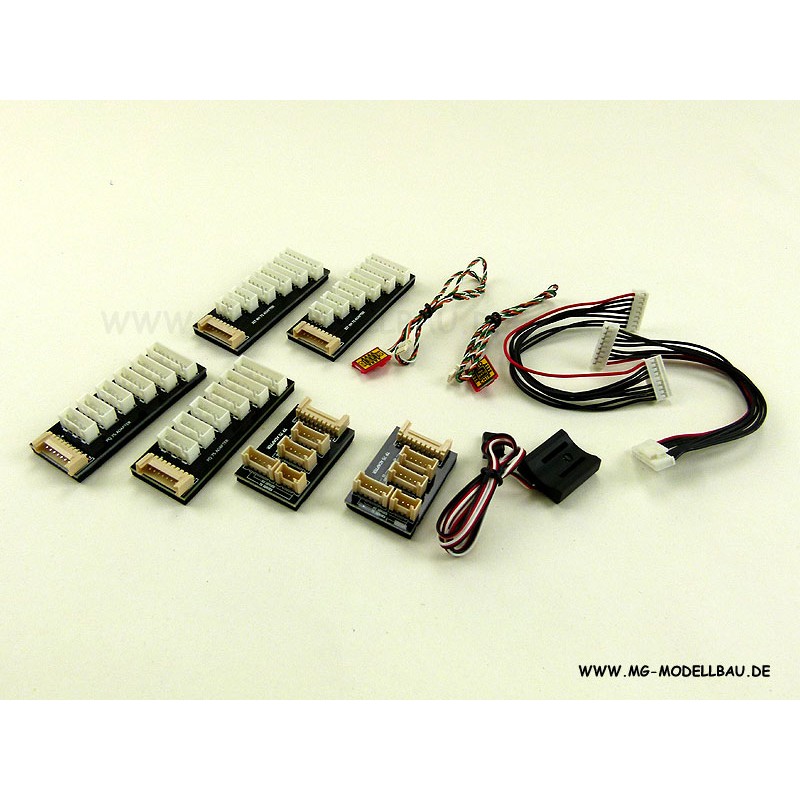

Delivery:
- 1 x Power Charger ® Twin Peak
(Red-pole terminal with plug / black)
- 2 x equalizer adapter XH
- 2 x equalizer adapter FP / TP
- 2 x equalizer adapter PQ
- 1 x temperature sensor
- 2 x BID-CHIP with Cable
