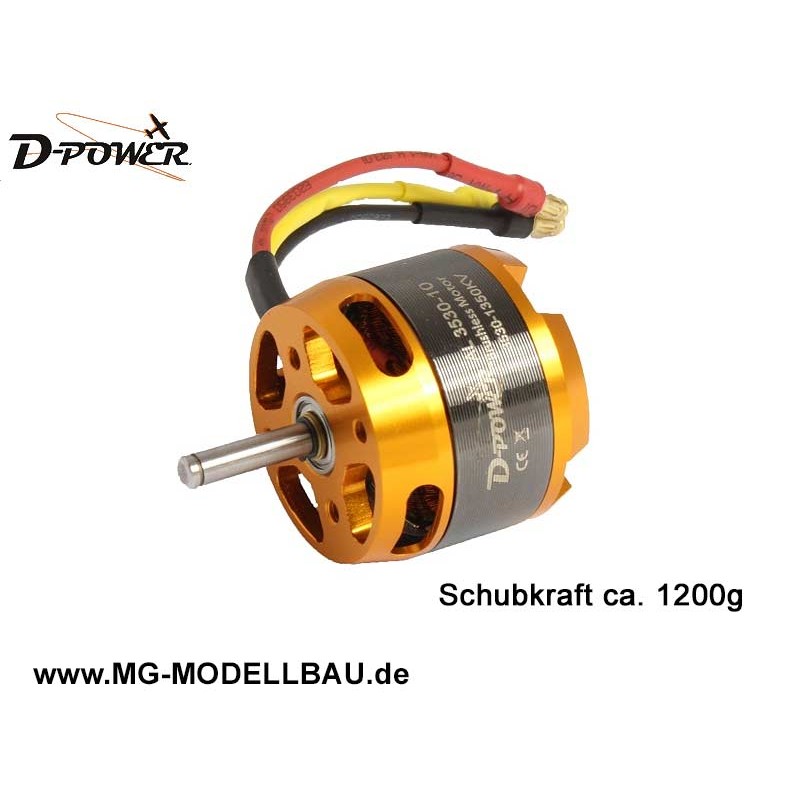

353010 D-Power AL 3530-10 Brushless Motor

D-Power 353010 D-Power AL 3530-10 Brushless Motor

With the D-Power Brushless motors series, we offer you a wide range of high-quality drives. The outer rotor has finely balanced bells (including stickers), which guarantee a perfect runout. Thanks to the high-quality neodymium magnets and the windings made of particularly pure copper, the D-Power motors achieve a high degree of efficiency.

The outer rotor can be mounted on both sides. The outer rotor motors are supplied with air screw drivers, rear wall mounting and mounting material.

All engines were surveyed and tested by a well-known engineer in Germany. The data given by the manufacturer were confirmed by the technical measurements.

features:

- Very high torque
- High-quality neodymium magnets
- Double ball bearing
- Circular-optimized, fine- balanced aluminum blocks
- CNC machined from high quality aluminum

Technical specifications:
- Properties Motor AL 3530-10
- Dimensions: 35 x 30 mm
- Shaft Ø: 4,0
- Lipo / NC cells: 3 - 4 / 8- 10
- No load current: 1.0A
- recommended current: 20A
- Current short: 25A
- Idle speed: 1400 rpm / V
- Weight: 75g
- Thrust: approx. 1200g

Recommended:
Number of cells air screw - current
2S Lipo ---
3S Lipo: 7 x 6/8 x 5
4S Lipo: 6.5 x 6.5 / 7 x 5

Supplied complete with air screw driver, rear wall mounting and mounting material
