Leprechaun XL building kit Dane-RC

Leprechaun XL kit 4120mm Dane-RC

Item number: 00102 / 690284
EAN: 0086544914447

Intro:
This kit has been meticulously redesigned by Dane-RC to maintain the elegant appearance and shape intended by original creator Dick Twomey.
This model is a pleasure to assemble as well as fly, thanks to the high precision parts that mesh perfectly.

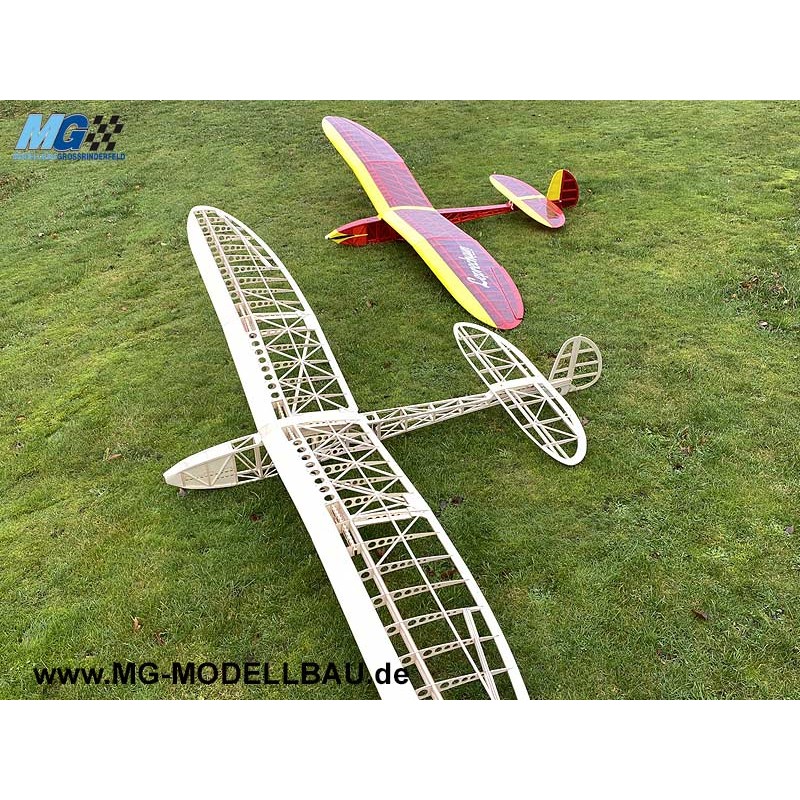

The Leprechaun XL is the big brother of the Leprechaun. The additional center section gives it a remarkable wingspan of 4120 mm.
This version is delivered with an enlarged rudder.

The Leprechaun XL is perfectly suitable as a glider or electric flight model, for the electric version you will find an optional conversion kit under accessories (item number: 690287).
The pilot can make the fuselage, for easier transport, divisible. An optional conversion kit is offered for this purpose. (part number: 690288).

Features:
- Construction kit in classic wooden construction
- 1:1 scale building plan
- All laser-built parts in highest precision
- Model can be built as a glider or electric flight model
- Manufacturer Dane-RC

Technical data:
- Wingspan (mm)4120
- Length (mm)2165
- Flight weight (g) from 3800-4500
- Wing area (dm²) 182
- Wing loading (g/dm²) from 18,7
- Functions H, Q, S, flaps. Motor is option
- Necessary number of ducts: from 6 ducts
- Fuselage Balsa/Plywood Lightweight construction
- Wing balsa/plywood lightweight construction
- Battery: 2000mAh - 4,8V or 4S Lipo 14,8V +/-3300mAh
- Regulator: 65Ah
- Motor: Hacker A30-18 M KV2900 + 6,7:1
- Propellers: 18 x 11

- Servo recommendation:
Rudder: 1pc. D-Power AS575BB MG - or DS-570BB MG in the front section with rudder. For 2-piece fuselage a D-Power AS- or DS-340BB MG must be mounted in the tail.
Tailplane: 1 pc. D-Power AS- or DS-840BB MG
Aileron: 2 pcs. D-Power AS- or DS-225BB MG
Flaps: 2 pcs. D-Power AS- or DS-225BB MG

To cover the Leprechaun XL, you will need about 12 mtrs of foil in the base color and about 3 mtrs in the contrast color to make it a Dane RC version. The film we used on our Leprechaun is Oralight transparent red for the base and Oralight camdium yellow for the contrast
