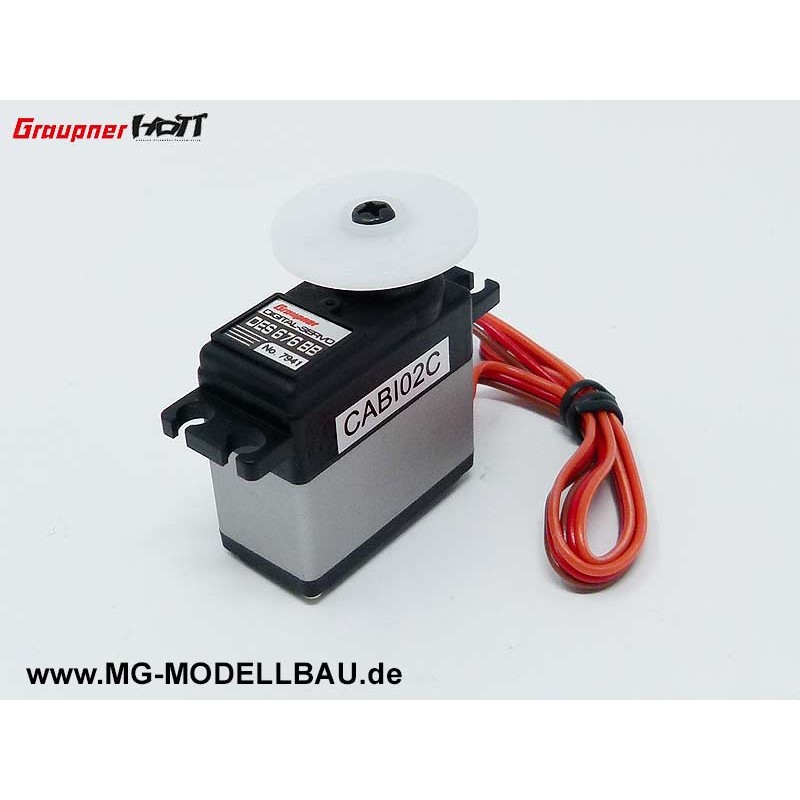

Servo digi DES 676 BB 16mm Graupner 7941

item number: G7941

Order quantity {quantity} {pc}

Unit price: {PRICE} EUR

Quantity:

z.Zt. nicht lieferbar  Delivery time: z.Zt. nicht lieferbar

incl. 19% VAT. without tax
EUR 27,90 EUR 23,45
plus Shippingcost

Servo digi DES 676 BB 16mm Graupner 7941

A new series of products to complement our existing range of digital servos.
These DES servos represent a product line which includes a suitable servo for every type of application, covering a vast range of specifications: different case sizes, gearbox types, torque levels and transit speeds, designed for any modeller from the beginner to the competition pilot.
The range includes some fully sealed versions (case screws, case sections and output gear) for increased operational reliability of your models.
Servos with precision-made twin-ballraced gearboxes made of aluminium and other metals guarantee superbly accurate positional performance. High-quality Amtel micro-controllers are used to process the control signals and provide good positional accuracy.
Suitable for RC model aircraft, helicopters and RC model cars.

- 2 x ball bearings
- Carbonite gear

Info
DES Servo (Digital Eco Servo) A new series of products from the digital servo segment.
The DES servos represent a product line which includes a suitable servo for virtually every type of application, covering a vast range of specifications: different case sizes, gear types, torque levels and transit speeds, designed for anymodeller from beginner
to competition pilot.
The range includes some fully sealed versions (case screws, case sections, and output gear) for increased operational reliability of your models.
Servos with precision-made twin-ballraced precision gears made of aluminium and other metals guarantee superbly accurate positional performance.
High-quality Amtel micro-controllers are used to process the control signals and provide good servo positioning accuracy.

Specification:
- Torque at 4.8 V, approx. [Ncm]: 37 Ncm
- Width [mm]: 16 mm
- Transit speed at 4.8 V, approx. [Sek / 40°] : 0,09 Sek/40°
- Holding torque 6.0V, approx. [Ncm]: 97 Ncm
- Charging rate at 4.8 V approx. [mA]: 795 mA
- Height [mm]: 33 mm
- Transit speed at 6.0 V, approx. [Sek / 40°] : 0,07 Sek/40°
- Weight [g]: 26 g
- Angular travel incl. trim, approx. : 2 x 45 °
- No-load current drain, approx. [mA] : 7 mA
- Torque at 6.0 V, approx. [Ncm]: 44 Ncm
- Overall length [mm]: 32 mm
- Charging rate at 6.0V approx. [mA]: 995 mA

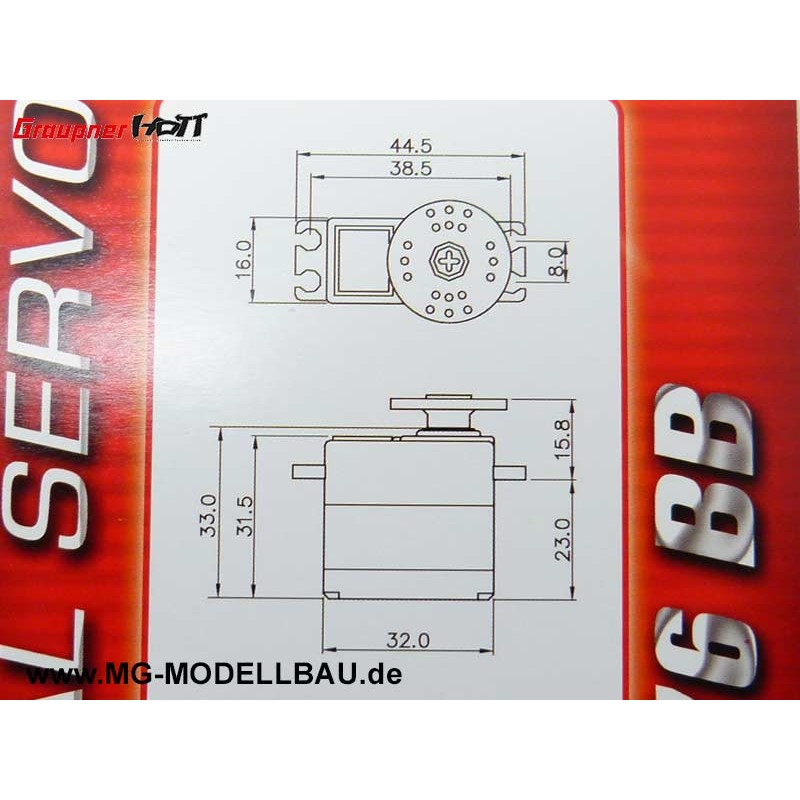

- Dimensions [LxWxH in mm]: 32 x 16 x 33 mm
- Holding torque 4.8V, approx. [Ncm]: 83 Ncm
- Bearings: 2 Ball-Bearing
- Replacement gearbox: 7941.2
- Gear unit: Carbonit
- Operating voltage neutral [V] : 4,8 ... 6,0 V
- Neutral impulse: 1,5 ms
- Max. operating frequency [ms / Hz]: 3,0 / 333 ms / Hz
- Brushless: No
- High-Voltage: No
- Servo type: digital
- Servo series: DES Servo
